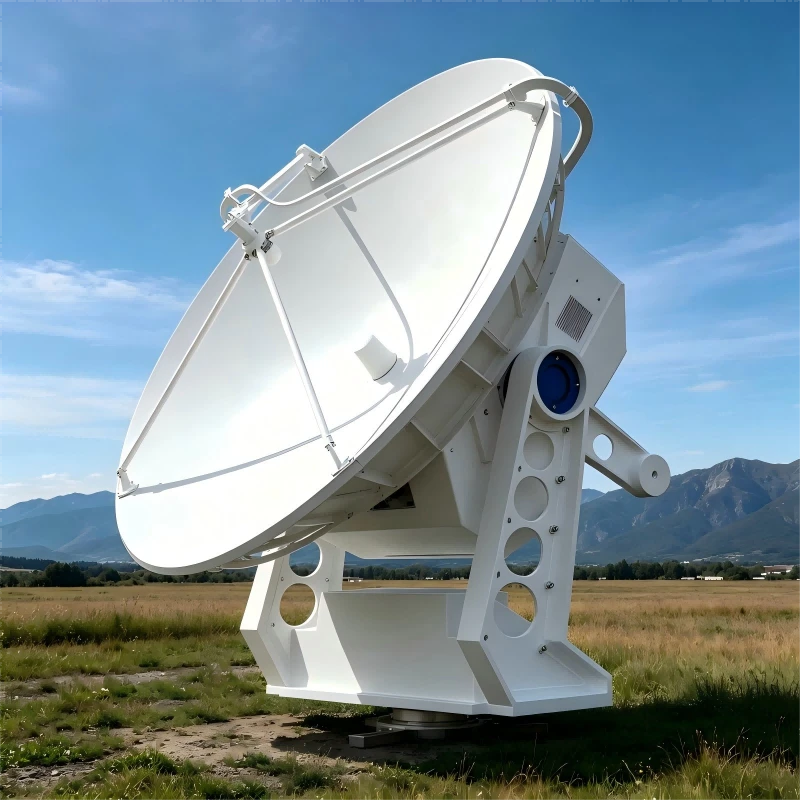

Huab Cua Huab Cua Radar
Cov khoom no -lub xeev huab cua radar npog kev soj ntsuam huab cua mus txog 300 mais. Cov khoom- xeev cov qauv zam tsis txhob muaj hluav taws xob txaus ntshai thiab siv hluav taws xob tsawg. Nws pib ua hauj lwm tam sim ntawd ib zaug powered rau, tsis xav tau preheating. Qhov kub thiab txias -tswj lub plhaub ua haujlwm ruaj khov hauv qhov kub thiab txias txias. Dual polarization sensing captures cov ntsiab lus zoo ntawm raindrops thiab snowflakes. Nws zoo weeds tawm hauv av thiab hiav txwv clutter cuam tshuam.
Hauj lwm lawm
Cov khoom no -lub xeev huab cua radar npog kev soj ntsuam huab cua mus txog 300 mais. Cov khoom- xeev cov qauv zam tsis txhob muaj hluav taws xob txaus ntshai thiab siv hluav taws xob tsawg. Nws pib ua hauj lwm tam sim ntawd ib zaug powered rau, tsis xav tau preheating. Qhov kub thiab txias -tswj lub plhaub ua haujlwm ruaj khov hauv qhov kub thiab txias txias. Dual polarization sensing captures cov ntsiab lus zoo ntawm raindrops thiab snowflakes. Nws zoo weeds tawm hauv av thiab hiav txwv clutter cuam tshuam. Kev suav cov nag lossis daus thiab ntsuas cov ntaub ntawv ntse pab cov neeg ua haujlwm paub txog huab cua hloov pauv thiab tshaj tawm kev ceeb toom txog kev puas tsuaj raws sijhawm.
Nta
Lub radar no tau txais tag nrho -khoom- xeev 1D digital active phased array tsim nrog tag nrho cov digital thiab coherent transceiver modules, ua ke nrog pulse Doppler thiab dual -polarization technology. Nws tsis muaj qhov txav tau txav tau los yog siab - cov raj hluav taws xob, xa ultra- ruaj khov ntev - lub sijhawm ua haujlwm. Nws tackles ntau cov ntaub ntawv yuam kev tshwm sim los ntawm beam deflection, tsis ruaj khov kav hlau txais xov nce thiab offset taw tes los ntawm kev calibration thiab kho, ua kom tag nrho cov saib xyuas cov ntaub ntawv yog thiab txhim khu kev qha. Nws txhawb ntau hom kev hloov pauv hloov pauv, suav nrog ntau qhov sib txuas sib txuas sib txuas, ib leeg thiab ntau- nqaj hloov pauv, hloov kho qhov kev daws teeb meem thiab pulse compression piv, ntxiv rau beam multiplexing, cia koj yoog raws cov chaw scanning kom haum rau cov xwm txheej sib txawv.
Technical ntsuas
|
Kev kuaj pom ntau (km) |
Kev ceeb toom ntau dua lossis sib npaug li 150 km |
|
Kev daws teeb meem ntau (m) |
Tsawg dua los yog sib npaug li 75 m |
|
Parameter Measurement Accuracy (RMS yuam kev) |
Ntau yam tsawg dua lossis sib npaug rau ± 75 mReflectivity Tsawg dua lossis sib npaug ± 1 dBVelocity Tsawg dua lossis sib npaug ± 1 m / sSpectral Dav Tsawg dua lossis sib npaug ± 1 m / s |
|
Yam tsawg kawg Detectable Reflectivity Factor ntawm 50 km (ib txhij xa / tau txais, siv tus nqi) |
Tsawg dua lossis sib npaug li 3 dBZ |
|
Peak Pulse Power (tag nrho lub zog) |
Ntau tshaj lossis sib npaug rau 1000 W |
|
Pulse Repetition Frequency |
300 Hz ~ 5000 Hz |
|
Qhov System Phase Noise |
Tsawg dua lossis sib npaug li 0.1 degree |
|
Hauv av Clutter Suppression |
Ntau dua lossis sib npaug li 55 dB |
|
Kav hlau txais xov Scan Speed |
Azimuth: 0 ~ 60℃/ s, yuam kev Tsawg dua lossis sib npaug li 5% Qhov siab: 0 ~ 60℃/ s, yuam kev Tsawg dua lossis sib npaug li 5% |
Daim ntawv thov teb
Cov huab cua radar no muab tag nrho cov kev soj ntsuam huab cua thiab kev kwv yees kwv yees thoob plaws 300-kilometer vojvoog. Nws nyob ze taug qab cov dej nyab sai sai thiab hauv zos me me - huab cua hnyav, thiab txhawb kev tiv thaiv huab cua thaum muaj xwm txheej ceev thiab phau ntawv ceev xwm txheej hloov huab cua. Nws khaws qhov muag ze ntawm huab cua hloov pauv rau kev nyab xeeb ntawm tshav dav hlau. Nws ua rau kev tshawb pom qhov muag tsis pom ntawm cov tsoos S-band thiab C-band radars. Nws ua haujlwm zoo kawg nkaus rau kev lag luam niaj hnub ntawm cov chaw ua haujlwm huab cua, chav dej txuag dej, pab pawg tswj hwm tshav dav hlau, cov roj av sab nrauv thiab cov chaw ua dej hiav txwv.
Vim li cas thiaj xaiv Peb Cov Khoom -Lub Xeev Huab Cua Radar
Cov huab cua radar no muaj cov qauv zoo tshaj plaws digital phased array nrog xoom txav cov khoom thiab tsis muaj siab -voltage txaus ntshai txhua. Nws pib tam sim ntawd nrog ultra- qis zog rub, nqa kev nyab xeeb thiab hassle- ua haujlwm dawb. Ua-hauv tshuab calibration kho beam offset yuam kev nyob rau hauv lub sij hawm, kom ntseeg tau tias txhua pawg ntawm kev soj ntsuam cov ntaub ntawv nyob twj ywm raug thiab ntseeg tau. Adjustable scanning configurations cia cov neeg ua haujlwm kho qhov kev daws teeb meem kom haum rau txhua yam kev soj ntsuam kev ua haujlwm. Nws suppresses hauv av thiab hiav txwv clutter cuam tshuam zoo los ntxuav cov suab paj nruag tsis raug. Advanced dual-polarization sensing kom meej meej paub qhov txawv ntawm raindrops, snowflakes thiab lwm yam microscopic huab cua hais. Nws tso tawm cov ntaub ntawv txheeb xyuas nplua nuj los pab cov neeg ua haujlwm sai sai ntes cov huab cua hnyav hauv zos thiab teb raws sijhawm. Nrog rau qhov siab tshaj plaws 300-kilometer nrhiav tau ntau yam, nws them nyiaj rau qhov kev tiv thaiv ntawm cov radars ib txwm muaj, zoo tagnrho rau kev saib xyuas niaj hnub ntawm tshav dav hlau, cov chaw txuag dej thiab ntau qhov chaw muaj kev lag luam.
Kev them nyiaj yug Customization
Peb tuaj yeem xa mus rau ib puag ncig thiab kho qhov system configuration kom tau raws li qhov xav tau sib txawv. Qee lub sij hawm, qhov no suav nrog kev ua haujlwm sib koom ua ke thiab cov txheej txheem kev teeb tsa tshiab, suav nrog:
- Multi-lus software interface
- Kev sib txuas lus ntawm cov ntaub ntawv
- Regional meteorological qauv, thiab muaj feem xyuam nrog
- Av chaw nres tsheb configuration
Yog tias koj tseem tab tom nrhiav ntau cov cuab yeej huab cua thov hu rau peb pab pawg kws tshaj lij rau
- Khoom specifications
- Kev them nyiaj yug qhov system configuration
- Kev koom tes OEM / ODM
- Kev hais lus thiab kev sib tham txog qhov project, ntxiv rau kev npaj dav dua yog tias xav tau
